₱5,750.00

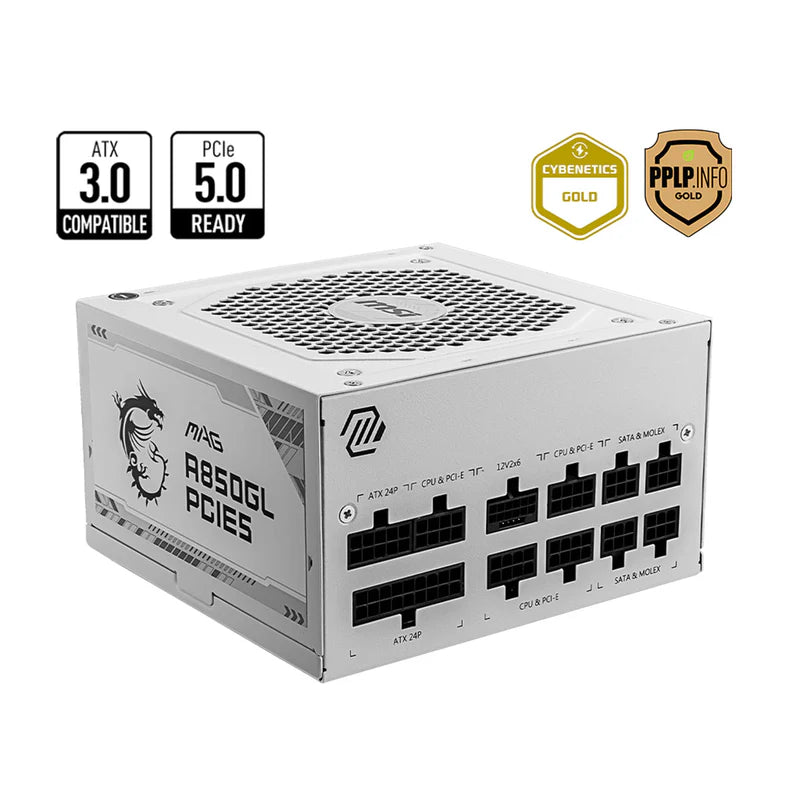

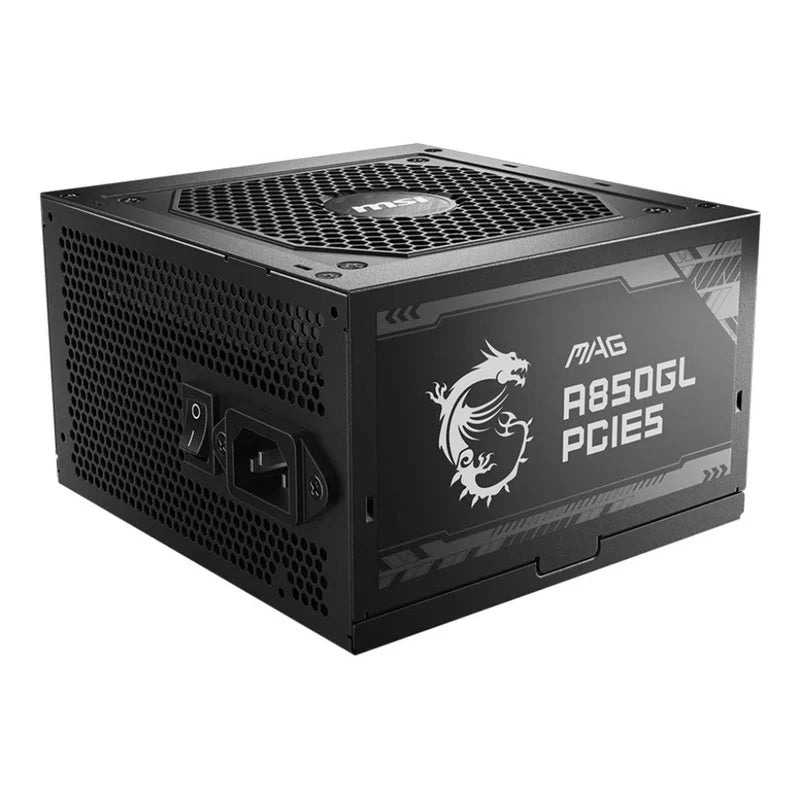

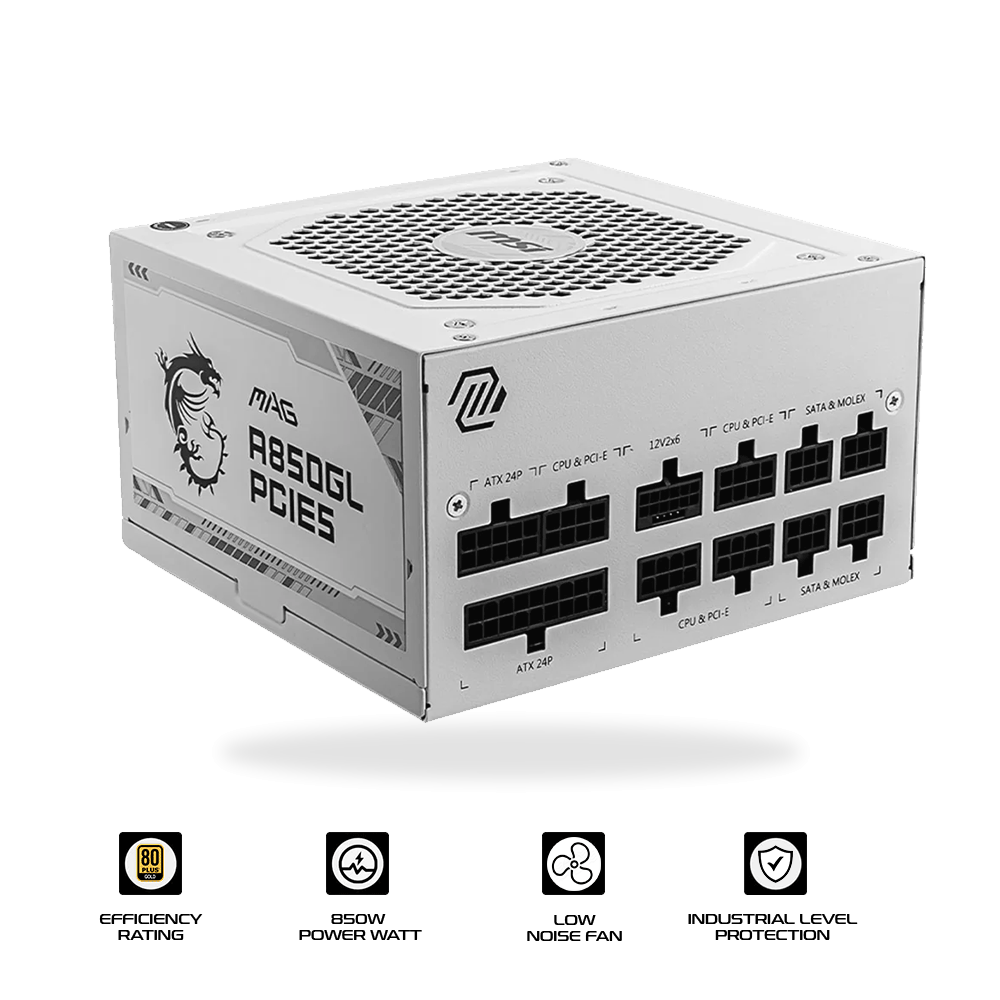

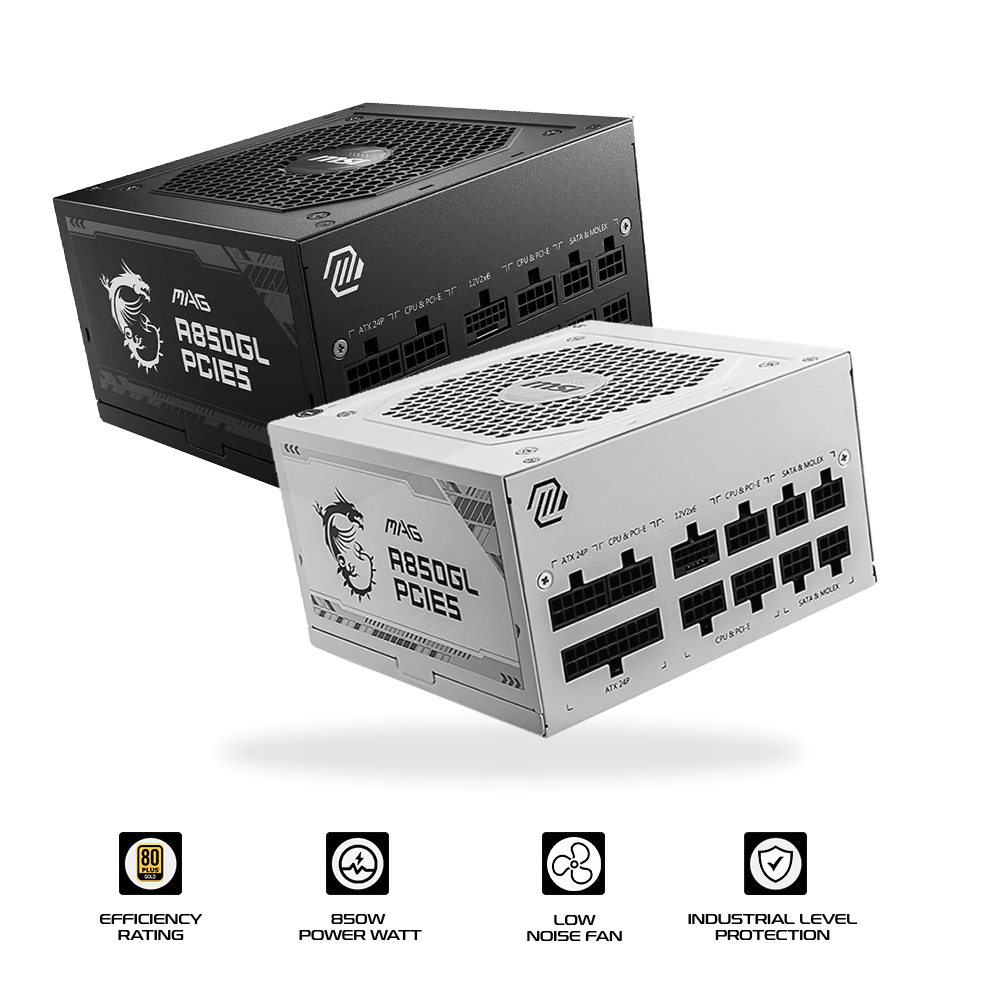

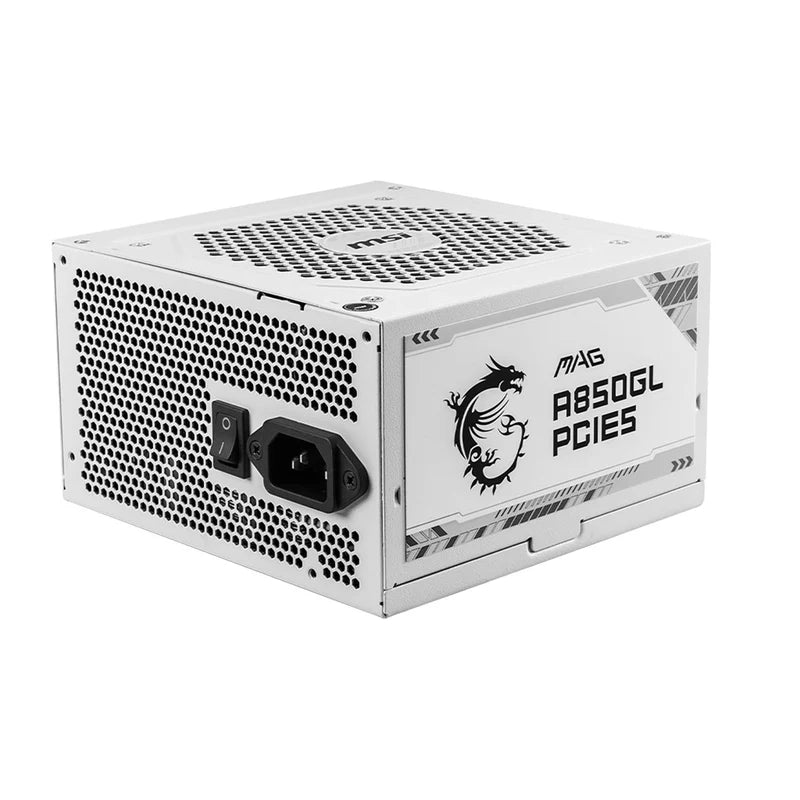

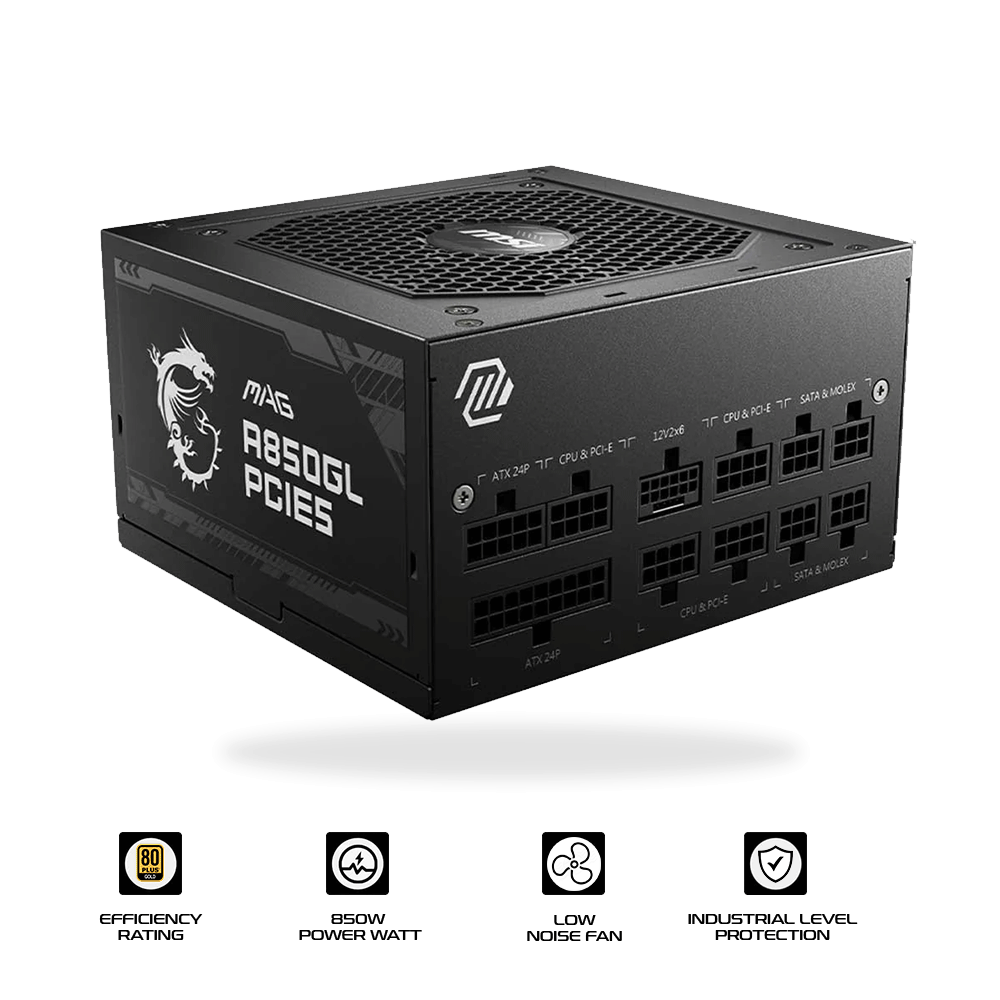

The MSI MAG A850GL is an 850W full modular power supply designed for high-performance systems. It supports ATX 3.1 and PCIe 5.1 with a native dual-color 16-pin cable, optimized for NVIDIA® GeForce RTX™ 40 Series graphics cards. Featuring 80 Plus Gold certification and active PFC, it delivers efficient and stable...
The MSI MAG A850GL is an 850W full modular power supply designed for high-performance systems. It supports ATX 3.1 and PCIe 5.1 with a native dual-color 16-pin cable, optimized for NVIDIA® GeForce RTX™ 40 Series graphics cards. Featuring 80 Plus Gold certification and active PFC, it delivers efficient and stable power. Industrial-grade protections including OVP, OCP, OPP, OTP, SCP, and UVP ensure system safety. Its 120mm fluid dynamic bearing fan and advanced LLC full bridge topology with DC-DC modules provide reliable cooling and power delivery for demanding setups.
SPECIFICATIONS
Efficiency Rating 80 PLUS Gold (up to 90%)
Modular Yes (full modular)

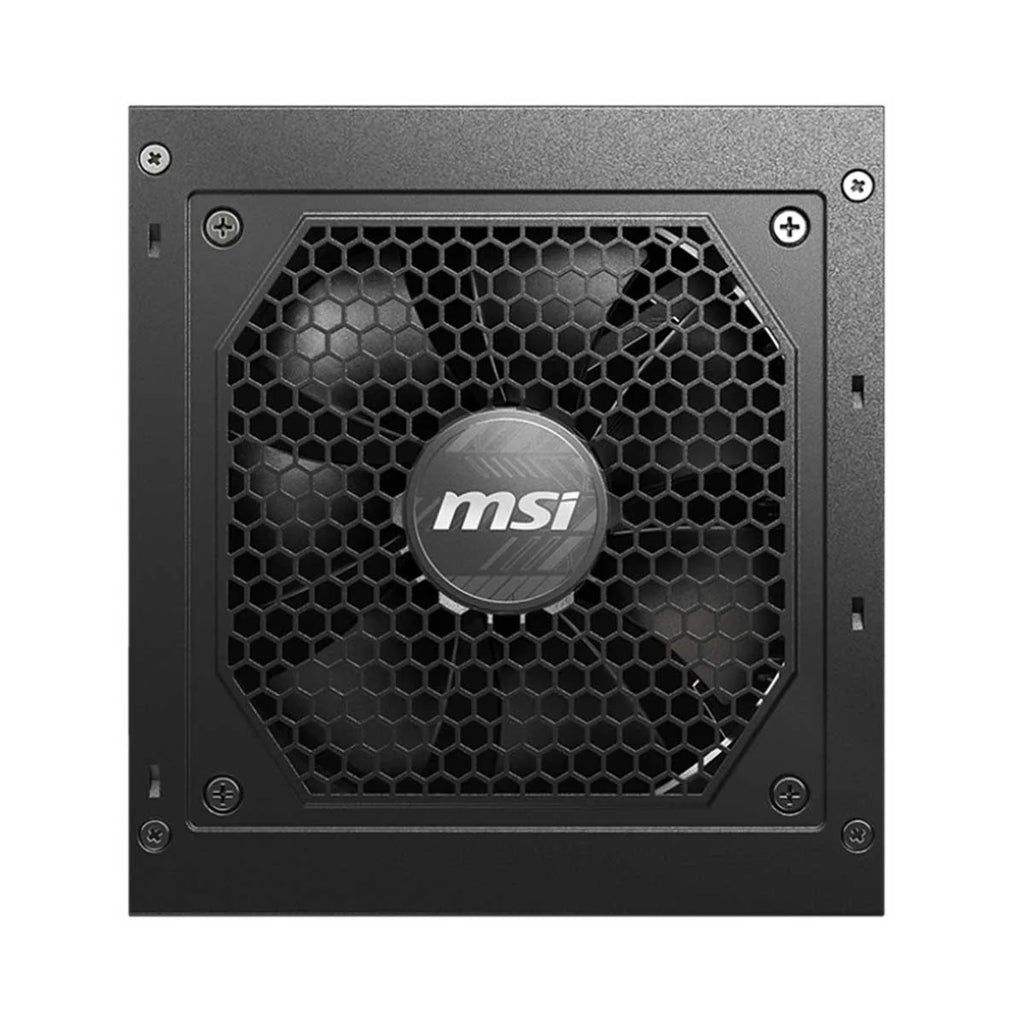

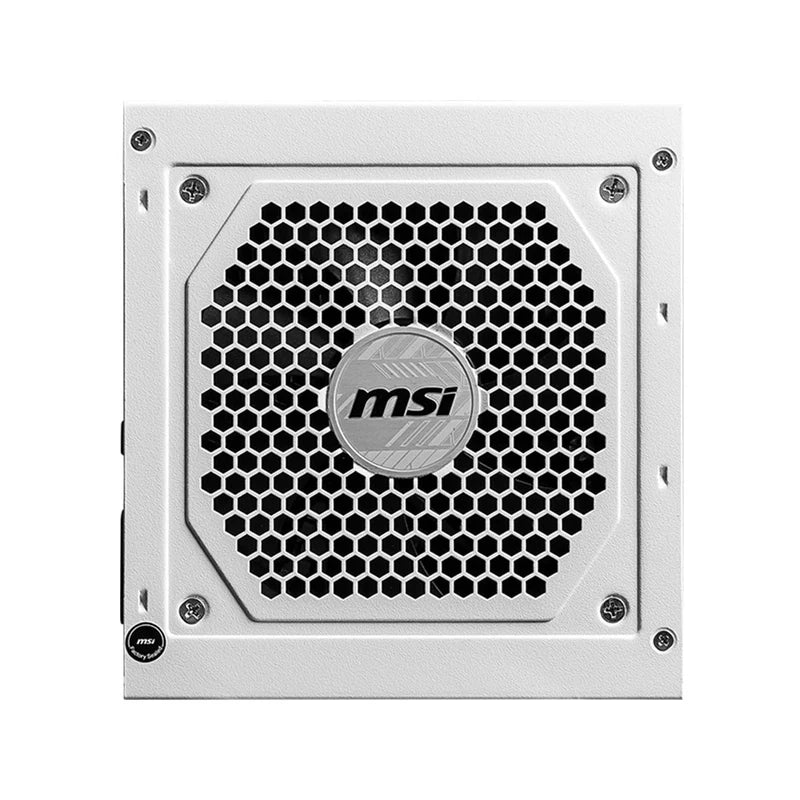

Fan Size 120 mm
Fan Bearing Fluid Dynamic Bearing
Dimensions (DxWxH) 140 x 150 x 86 mm
PFC Type Active PFC
Input Voltage Range 100~240 VAC
Power Watt 850W
Power Excursion 1700W (*up to 200% of the PSU's rated power for
100μs)
Input Frequency Range 47-63Hz
Protection OCP / OVP / OPP / OTP / SCP / UVP

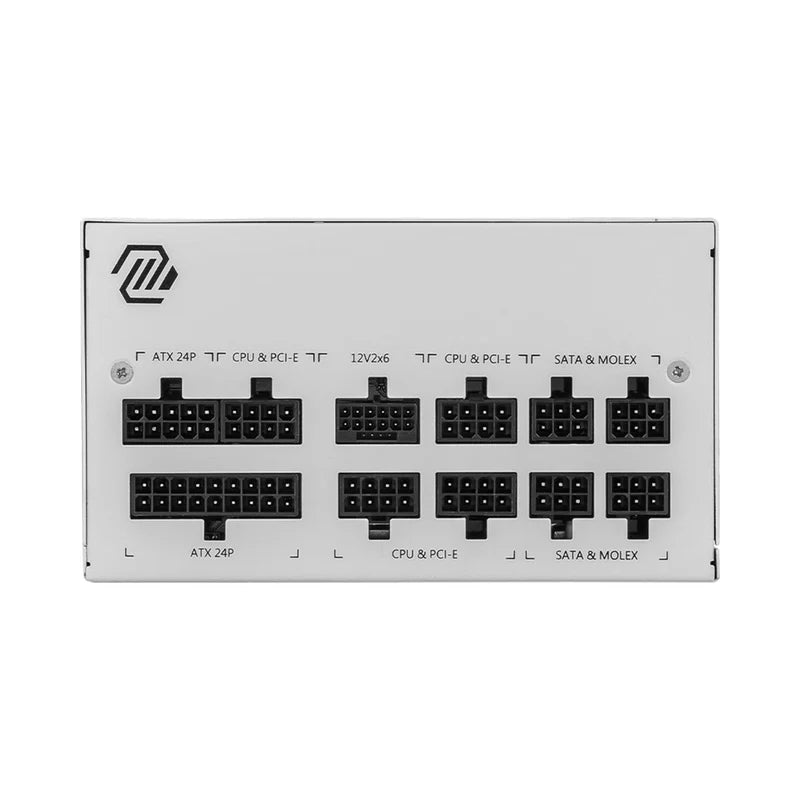

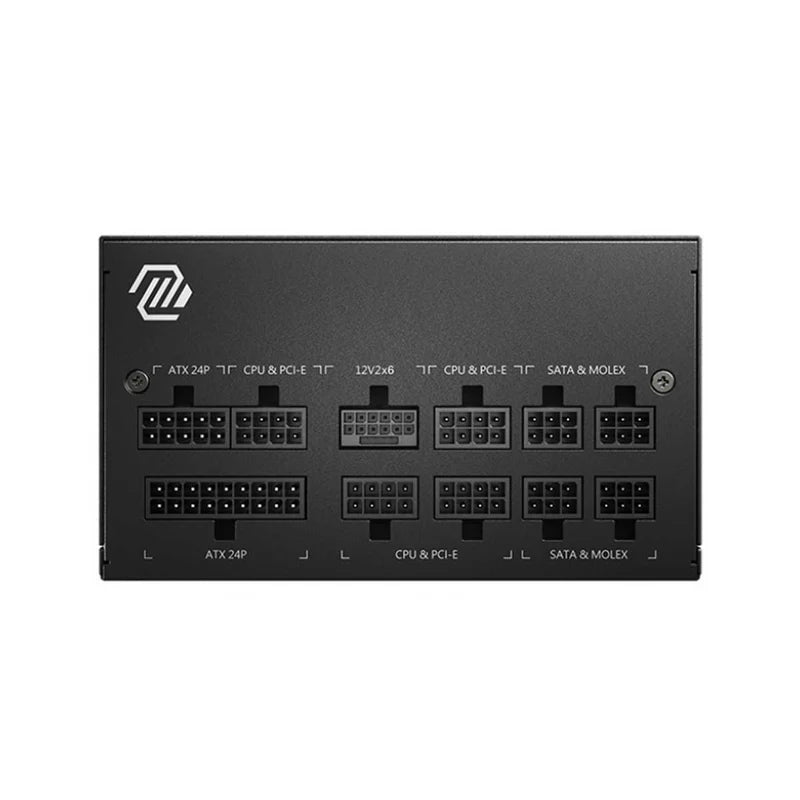

ATX (24 pin) 1
EPS (4+4 pin) 2
PCI-E 5.0 (16 pin) 1 (600W)
PCI-E (6+2 pin) 4
SATA (15 pin) 8
PERIPHERAL (4 pin) 4
FDD (4 pin) 1
