CPU
• AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Memory
• AMD Ryzen™ 5000 and 3000 Series Desktop Processors
• 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory *

AMD Ryzen™ 5000 and 4000 G-Series Processors
• 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory *
• ECC Memory (ECC mode) support varies by CPU.

Graphics
• 1 x DisplayPort 1.2
• 1 x HDMITM port
*Graphics specifications may vary between CPU types.

Expansion Slots
• AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
• 1 x PCIe 4.0 x16 SafeSlot (supports x16 mode)

AMD B550 chipset
• 1 x PCIe 3.0 x16 slot (supports x4 mode)*
• 3 x PCIe 3.0 x1 slots
*Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3

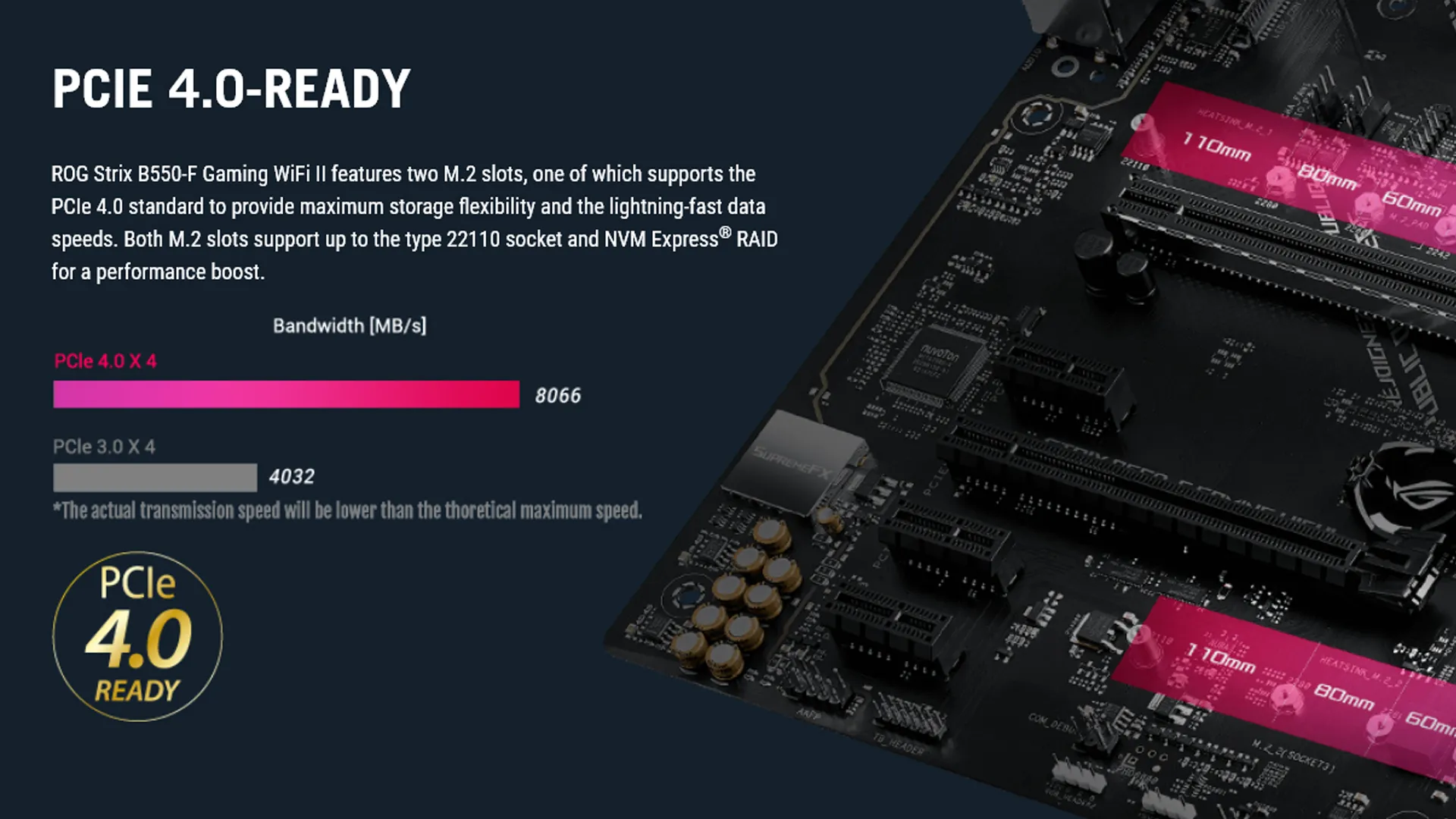

Storage
• Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
• AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

AMD B550 Chipset:
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
• 6 x SATA 6Gb/s ports
• Support RAID 0, 1, 10
• * When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled.

Ethernet
• 1 x Intel® 2.5Gb Ethernet
• 1 x Intel® I225-V 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth
• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
• Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

USB
Rear USB:
• Total 8 ports
• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports

Front USB:
Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
- Impedance sense for front and rear headphone outputs
- Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback*

Audio Features
- SupremeFX Shielding Technology
- Dual OP Amplifiers
- Premium audio capacitors
- Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 8-Channel audio.

Back Panel I/O Ports
• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports
• 1 x Wi-Fi Module
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Intel® I225-V 2.5G Ethernet
• 1 x Optical S/PDIF out
• 5 x Audio jacks
• 1 x BIOS FlashBackTM button

Internal I/O Connectors
• Fan and cooling related
• 1 x 4-Pin AIO_Pump header
• 1 x 4-Pin CPU fan header
• 1 x 4-Pin CPU_OPT fan header
• 3 x 4-Pin Chassis fan headers

Power related
• 1 x 24-pin main power connector
• 1 x 8-pin +12V power connector
• 1 x 4-pin +12V power connector

Storage related
• 2 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports

USB ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
• 1 x Addressable Gen 2 header
• 2 x AURA RGB headers
• 1 x Clear CMOS header
• 1 x Front panel audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal sensor header
• 1 x Thunderbolt™ header
