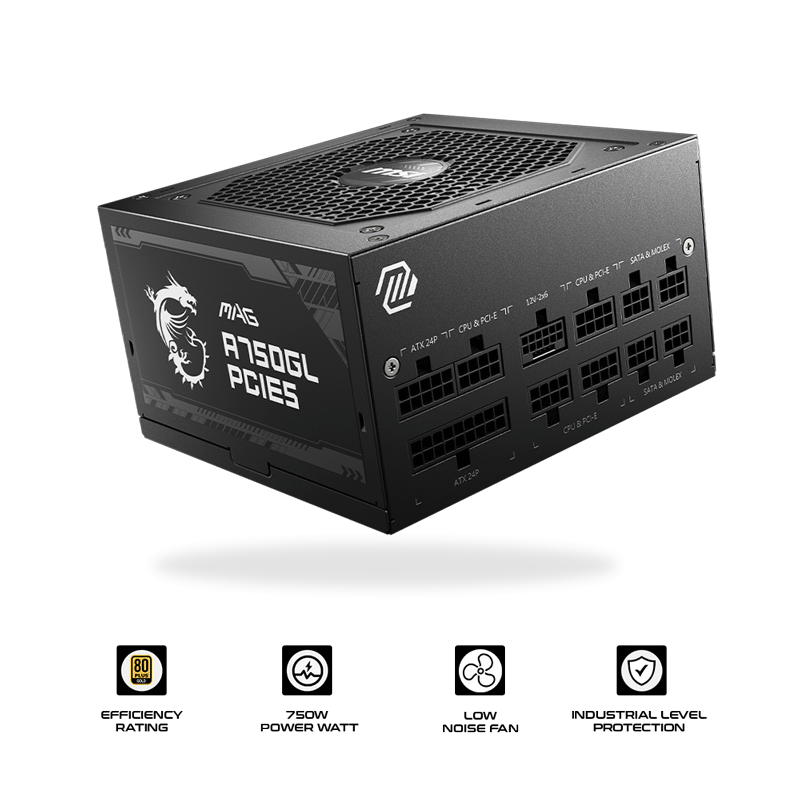

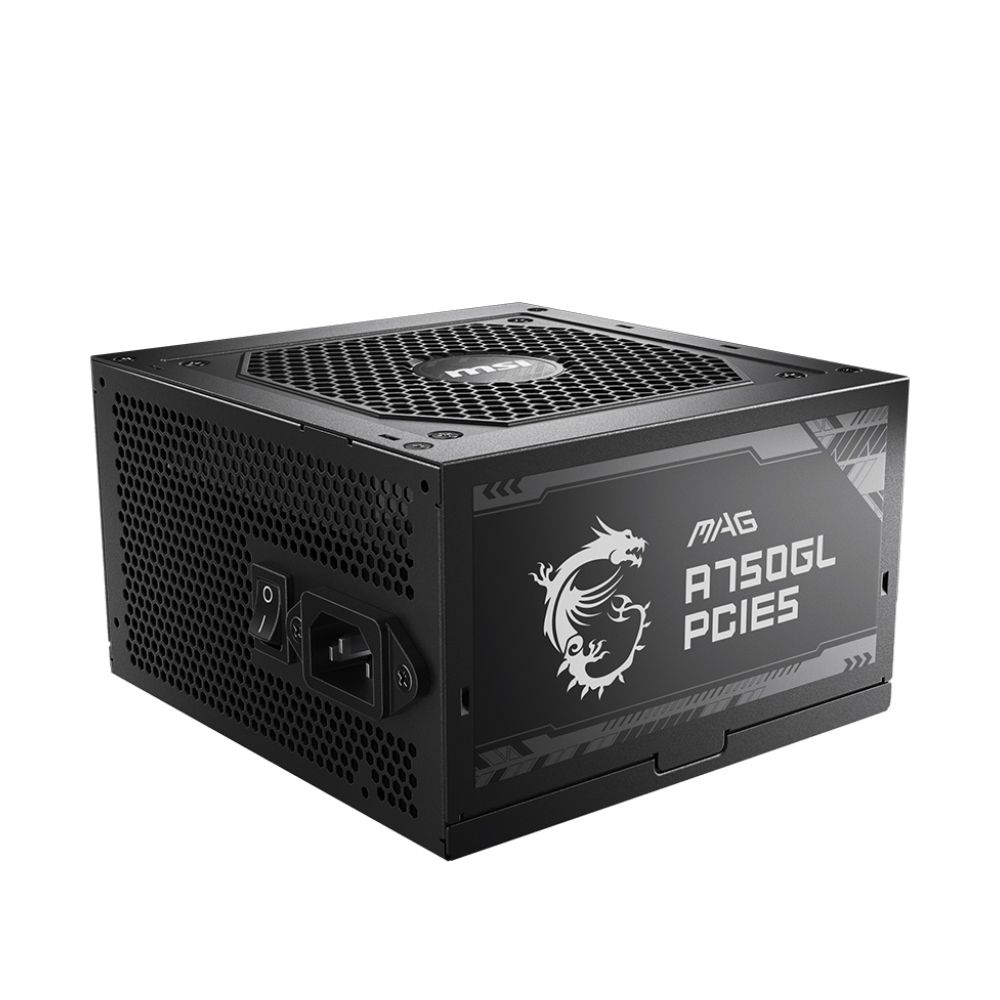

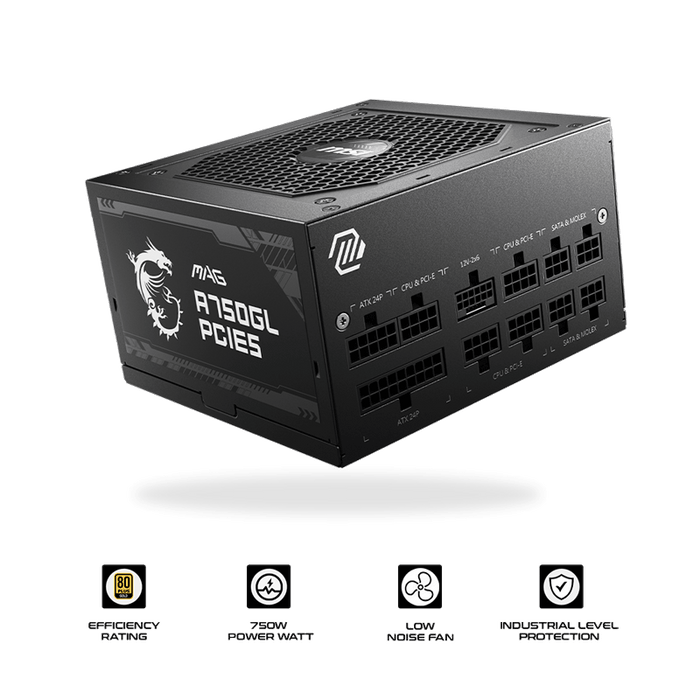

MSI MAG A750GL Gold Full Modular 750W PSU

ATX 3.1 ready, native PCIe 5.1 dual-color 16-pin cable

Supports NVIDIA® GeForce RTXTM 40 Series graphics cards

Full modular design, Flat cables

80 Plus Gold certified for high efficiency

Active PFC design, Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP

120mm Fluid Dynamic Bearing Fan

LLC Full Bridge Topology with DC-DC module design

SPECIFICATIONS
Efficiency Rating 80 PLUS Gold (up to 90%)
Modular Yes (full modular)
Fan Size 120 mm
Fan Bearing Fluid Dynamic Bearing
Dimensions (DxWxH) 140 x 150 x 86 mm
PFC Type Active PFC
Input Voltage Range 100~240 VAC
Power Watt 750W
Power Excursion 1500W (*up to 200% of the PSU's rated power for
100μs)
Input Frequency Range 47-63Hz
Protection OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 pin) 1
EPS (4+4 pin) 2
PCI-E 5.0 (16 pin) 1 (450W)
PCI-E (6+2 pin) 3
SATA (15 pin) 8
MOLEX (4 pin) 4
FDD (4 pin) 1
