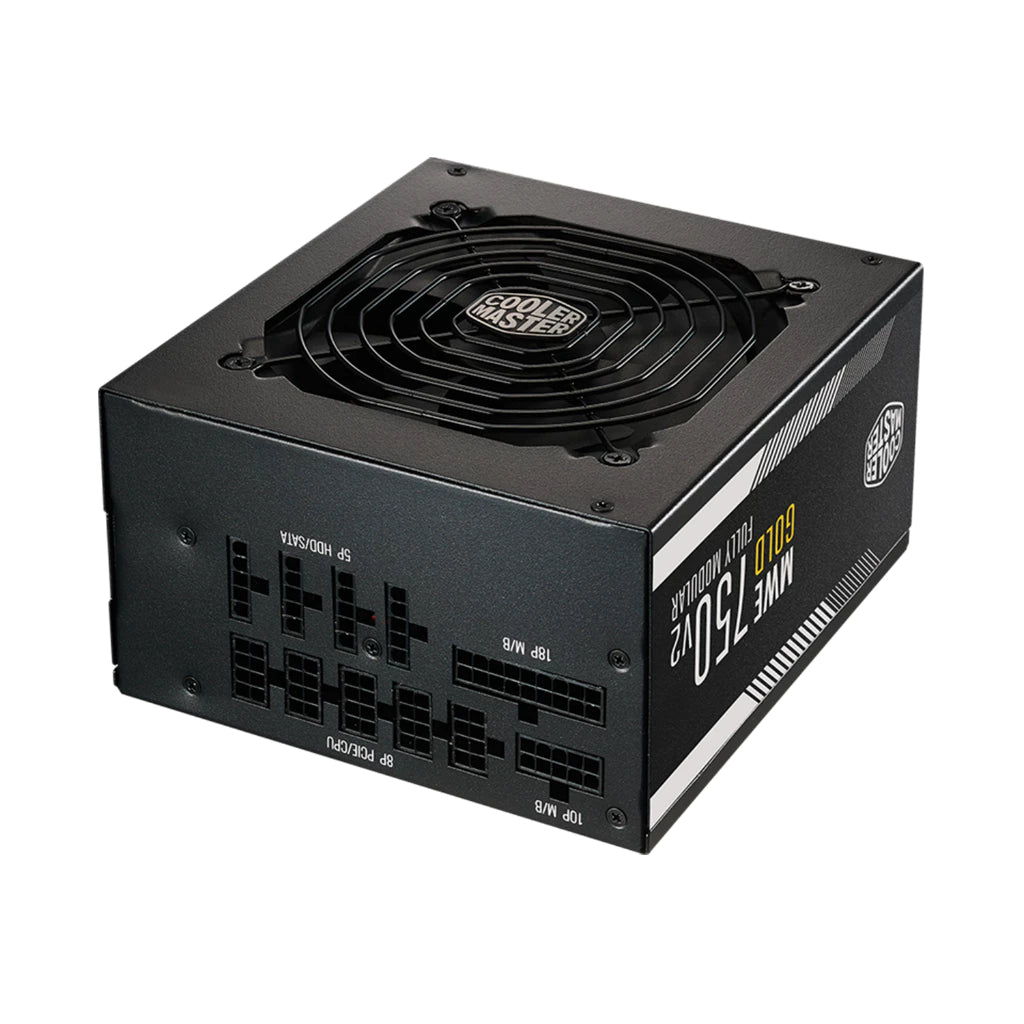

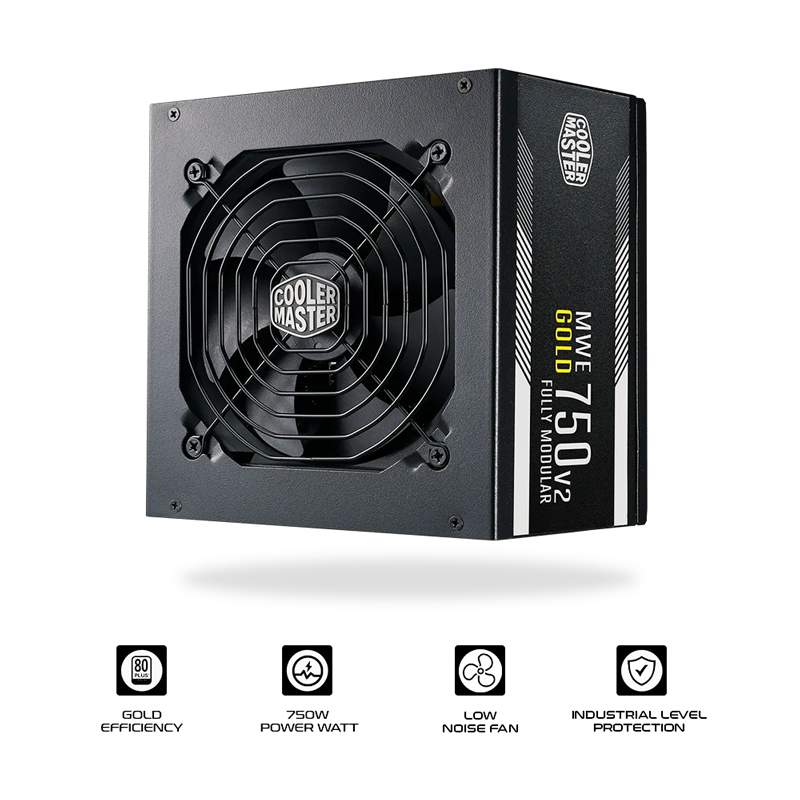

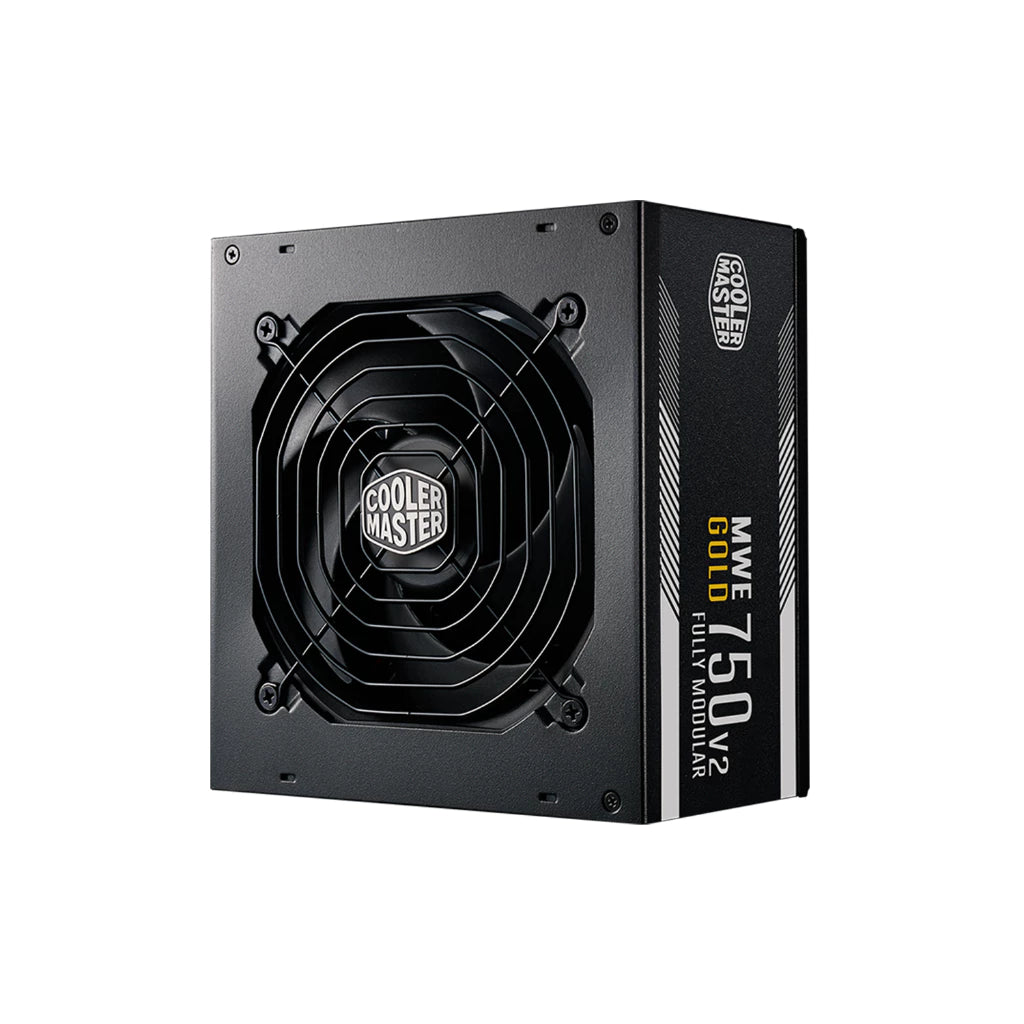

Cooler Master 750W MWE 80+ Gold ATX Full Modular MPE-7501-AFAAG-3EU2 PSU

The Cooler Master 750W MWE 80+ Gold V2 PSU delivers efficient and reliable power with 80 Plus Gold certification, ensuring up to 90% energy efficiency. Its full modular design simplifies cable management and system customization. Equipped with two EPS connectors, it supports high-performance CPUs, while the 120mm HDB fan ensures quiet cooling under high thermal loads. Built for durability, this power supply maintains stability even in demanding environments, making it ideal for expert users seeking dependable, efficient power delivery.

SPECIFICATIONS

Model   -  MPE-7501-AFAAG
ATX Version    -ATX 12V Ver. 2.41
PFC    -Active PFC
Input Voltage    -100-240V
Input Current  -10-5A
Input Frequency  -  50-60Hz
Dimensions (L x W x H) -   160 x 150 x 86 mm
Fan Size  -  120mm
Fan Bearing  -  HDB
Fan Speed -   1500 RPM
Noise Level @ 20% -   0 dBA
Noise Level @ 50%  -  17.8 dBA
Noise Level @ 100% -   24.9 dBA
Efficiency -   90% @ Typical Load
80 PLUS Rating -   80 PLUS Gold
ErP 2014 Lot 3  -  Yes
Operating Temperature -   0-50°C
Power Good Signal   - 100 - 150 ms
Hold Up Time  -  >16ms at 100% Load
MTBF  -  >100,000 Hours
Protections -   UVP / OVP / OPP / OTP / SCP / OCP
Regulatory  -  TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, UKCA

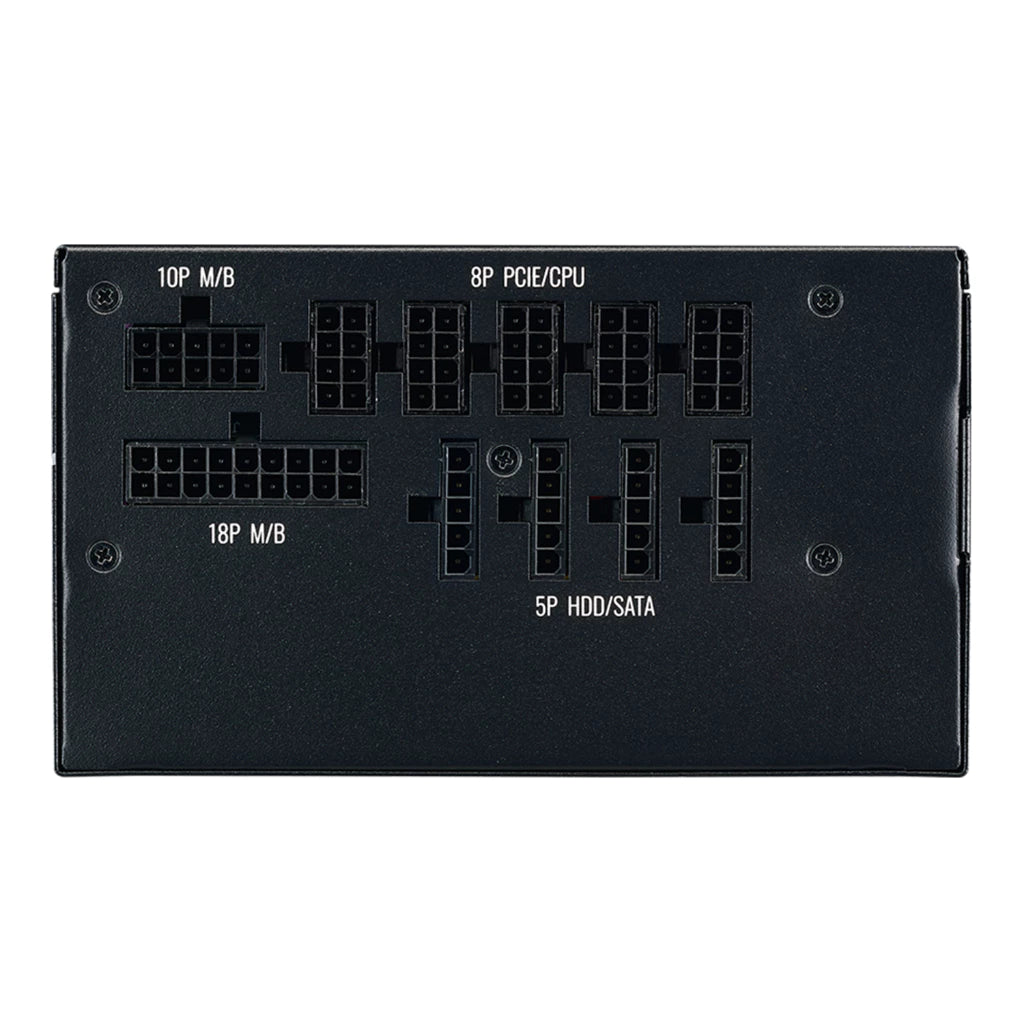

ATX 24 Pin Connectors   - 1
EPS 4+4 Pin Connectors -   1
EPS 8 Pin Connector -   1
SATA Connectors  -  12
Peripheral 4 Pin Connectors -   4
PCI-e 6+2 Pin Connectors -   4
Series  -  MWE Gold Series
Category -  500 to 750W
Modular  -  Fully Modular
80 Plus Efficiency -   Gold
Form Factor  -  ATX
Watts  -  750W
