SPECIFICATIONS:

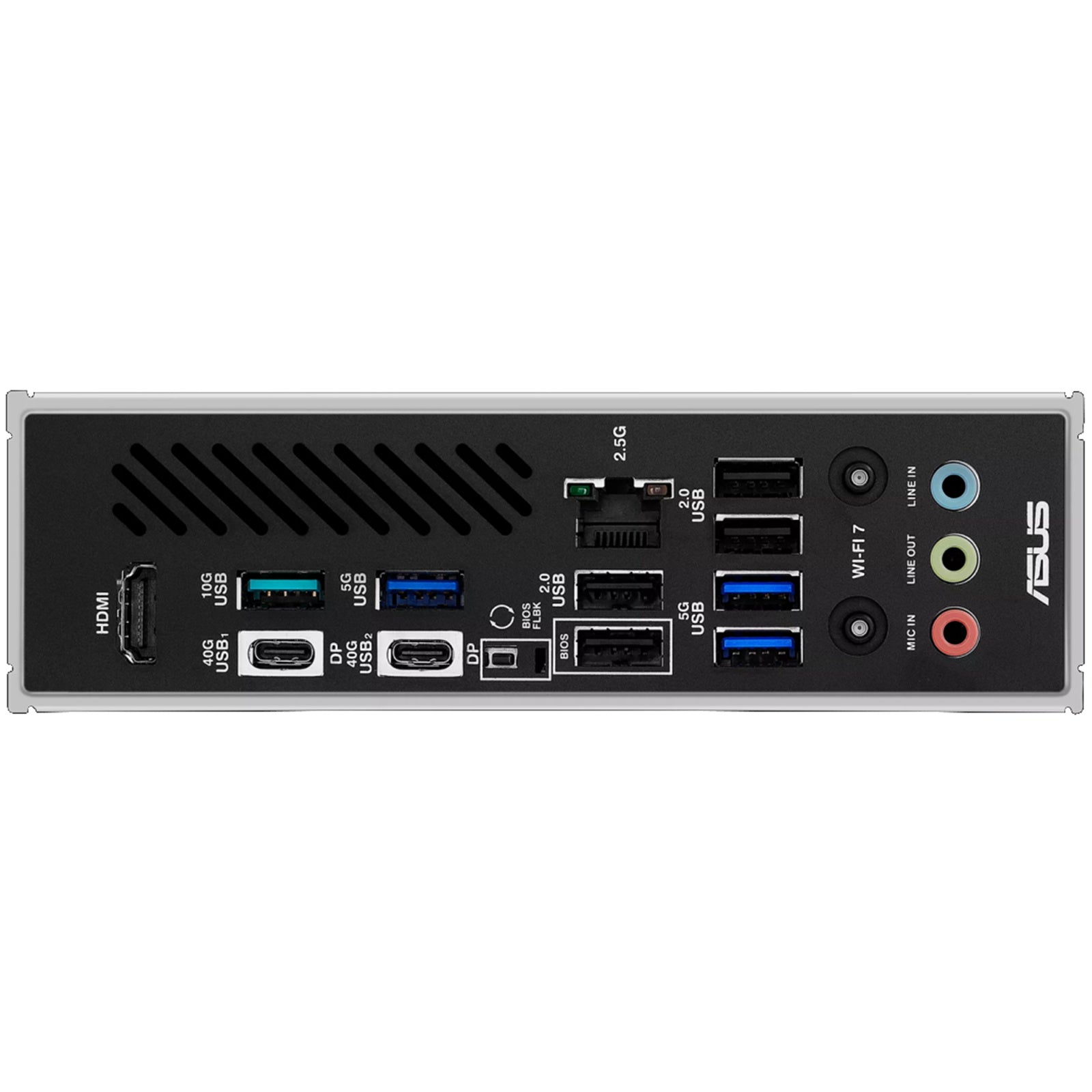

1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
* Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
*** VGA resolution support depends on processors' or graphic cards' resolution.
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 ×16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 ×16 slot (supports x8/x4 mode)
AMD X870 Chipset
2 x PCIe 4.0 ×16 slots (support x1 mode)
1 x PCIe 3.0 ×16 slot (supports x1 mode)
Fan and Cooling Related
1 × 4-pin CPU Fan header
1 × 4-pin CPU OPT Fan header
1 × 4-pin AIO Pump header
4 × 4-pin Chassis Fan headers
Power Related
1 × 24-pin Main Power connector
2 × 8-pin 12V CPU Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 × 10-1 pin System Panel header
